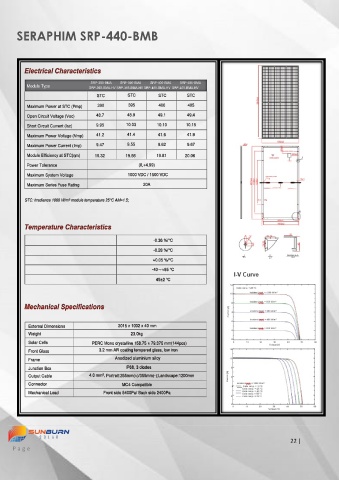

SERAPHIM SRP-440-BMB

Electrical Characteristics

SRP-390-BMA
SRP-405-BMA
SRP-400-BMA
SRP-395-BMA
Module Type SRP-390-BMA-HV SRP-395-BMA-HV SRP-400-BMA-HV SRP-405-BMA-HV

STC STC STC STC
Maximum Power at STC (Pmp) 390 395 400 405

Open Circuit Voltage (Voc) 48.7 48.9 49.1 49.4 2015±2
Short Circuit Current (Isc) 9.95 10.03 10.10 10.15
41.4
Maximum Power Voltage (Vmp) 41.2 41.6 41.9
Maximum Power Current (Imp) 9.47 9.55 9.62 9.67

Module Efficiency at STC(ηm) 19.32 19.56 19.81 20.06 1002±2
40±1

Power Tolerance (0,+4.99) 200±5
Mounting holes

200±5
SERIAL NUMBER
Maximum System Voltage 1000 VDC / 1500 VDC
SERIALNUMBER I
Maximum Series Fuse Rating 20A Label

STC: lrradiance 1000 W/m² module temperature 25°C AM=1.5; 2015±2 1735±1 1235±1 Grounding holes 10±1
2×Ø

Juun nccti ti o on B n B ooxx Junction B ox Junction B ox
negative ( - ) Junction Box positive ( + )
Temperature Characteristics

A A

-0.36 %/°C
Ⅱ
-0.28 %/°C
952±2
1002±2
+0.05 %/°C

-40～+85 °C 9 70 70 35

45±2 °C 14 70 70 40
I II Section A-A
5:1 2:1 10:1

Mechanical Specifications

I-V Curve

External Dimensions 2015 x 1002 x 40 mm 12
Cells temp. = 25 °C
Weight 23.0kg
Solar Cells PERC Mono crystalline 158.75 × 79.375 mm(144pcs) 10 Incident Irrad. = 1000 W/m²

Front Glass 3.2 mm AR coating tempered glass, low iron 8 Incident Irrad. = 800 W/m² TM
Frame Anodized aluminium alloy Current [A] 6 Incident Irrad. = 600 W/m²
Junction Box IP68, 3 diodes Incident Irrad. = 400 W/m²
4
Output Cable 4.0 mm², Portrait:255mm(+)/355mm(-);Landscape:1200mm

Incident Irrad. = 200 W/m²
2
Connector MC4 Compatible
Cuts Night, Breaks Dawn.
Mechanical Load Front side 5400Pa/ Back side 2400Pa 0
30
0 10 20 Voltage [V] 40 50 60
12

Packing Configuration 10

8

Current [A] 6
22 |
Incident Irrad. = 1000 W/m²
4 Cells temp. = 10 °C
P a g e Cells temp. = 25 °C
Cells temp. = 40 °C
Cells temp. = 55 °C
2 Cells temp. = 70 °C
