Page 46 - Solar Panels

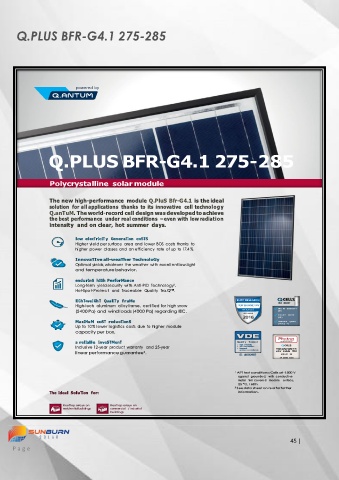

Q.PLUS BFR-G4.1 275-285

Q.PLUS BFR-G4.1 275-285

Polycrystalline solar module

The new high-performance module Q.PluS Bfr-G4.1 is the ideal
solution for all applications thanks to its innovative cell technolog y
Q.anTuM. The world-record cell design was developed to achieve
the best performance under real conditions – even with low radiation
intensity and on clear, hot summer days.

low elecTrIcIT y GeneraTIon coSTS
Higher yield per surface area and lower BOS costs thanks to
higher power classes and an efficiency rate of up to 17.4 %.

InnovaTIve all-weaTher TechnoloGy
Optimal yields, whatever the weather with excellent low-light
and temperature behavior.

endurInG hIGh PerforMance
Long-term yield security with Anti-PID Technology ,
1
Hot-Spot-Protec t and Traceable Quality Tra.Q™.

lIGhT-weIGh T QualITy fraMe
High-tech aluminum alloy frame, certified for high snow YIELD SECURITY
ANTI PID TECHNOLOG Y
(5400 Pa) and wind loads (4000 Pa) regarding IEC. (APT )
HOT-S PO T PROTECT
(HSP )
MaxIMuM coST reducTIonS TRACE A B L E QUALIT Y
(TRA.Q ™)
Up to 10 % lower logistics costs due to higher module
capacity per box.

a relIaBle InveSTMenT Qualit y Teste d M OD: 27898 phot on. inf o/labor at or y
Inclusive 12-year product warranty and 25-year ✓ high reliability Best polycrystalline
✓ low degradation
✓ frequent
linear performance guarantee . product surveillance solar module 2014
2
ID. 40032587 Q.PRO-G2 235
174 modules tested

1 APT test conditions: Cells at -1500 V
against grounde d, with conducti ve
metal foil covere d module surface,
25 °C, 168 h
2 See data sheet on rear for further
The Ideal SoluTIon for: information.

Rooftop arrays on Rooftop arrays on
residential buildings commer cial / industrial
buildings
