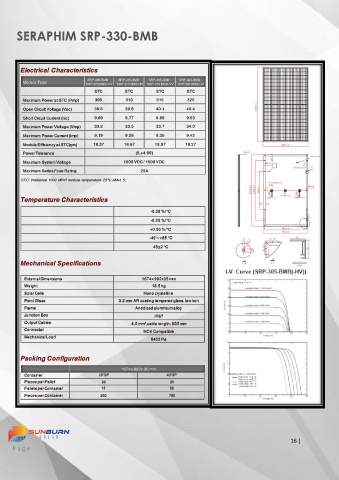

SERAPHIM SRP-330-BMB

Electrical Characteristics
SRP-305-BMB SRP-310-BMB SRP-315-BMB SRP-320-BMB
Module Type
SRP-305-BMB-HV SRP-310-BMB-HV SRP-315-BMB-HV SRP-320-BMB-HV

STC STC STC STC

Maximum Power at STC (Pmp) 305 310 315 320

Open Circuit Voltage (Voc) 39.5 39.8 40.1 40.4 1674±1

Short Circuit Current (Isc) 9.69 9.77 9.85 9.93

Maximum Power Voltage (Vmp) 33.2 33.5 33.7 34.0

Maximum Power Current (Imp) 9.19 9.26 9.35 9.42

Module Efficiency at STC(ηm) 18.37 18.67 18.97 19.27
992±1

Power Tolerance (0,+4.99) 35±1
200±5 SERIAL NUMBER
Maximum System Voltage 1000 VDC / 1500 VDC 200±5 SERIAL NUMBER
Maximum Series Fuse Rating 20A Mounting holes I
Label
STC: lrradiance 1000 W/m² module temperature 25°C AM=1.5;

Grounding holes
2×Ø 10±1
1674±1 1394±1 894±1 900 B O X BOX B O X

900
Temperature Characteristics negative ( - ) Junction Box positive ( + )

A A
-0.38 %/°C

Ⅱ
-0.28 %/°C

+0.05 %/°C 942±1

992±1

-40～+85 °C
9 70 70 35

45±2 °C
14 70 70 35

II
Mechanical Specifications I 2:1 Section A-A
5:1
10:1
I-V Curve (SRP-305-BMB(-HV))
External Dimensions 1674x 992x35 mm

12
Weight 18.5 kg Cells temp. = 25 °C

Solar Cells Mono crystalline 10 Incident Irrad. = 1000 W/m²
Front Glass 3.2 mm AR coating tempered glass, low iron 8 Incident Irrad. = 800 W/m² TM
Frame Anodized aluminium alloy Current [A] Incident Irrad. = 600 W/m²
6
Junction Box IP67 4 Incident Irrad. = 200 W/m²
Incident Irrad. = 400 W/m²
Output Cables 4.0 mm²,cable length: 900 mm
2
Connector MC4 Compatible Cuts Night, Breaks Dawn.
0
Mechanical Load
5400 Pa 0 10 20 30 40 50
Voltage [V]

10
Packing Configuration 8

1674x 992x 35 mm 6

Container 20’GP 40’GP Current [A]
Pieces per Pallet 30 30 4 Incident Irrad. = 1000 W/m²
Cells temp. =10 °C
Cells temp. =25 °C
Cells emp. =40 °C
t
Pallets per Container 12 26 2 Cells temp. =55 °C
Cells emp. =70 °C
t
Pieces per Container 360 780

0
0 10 20 Voltage [V] 30 40 50
