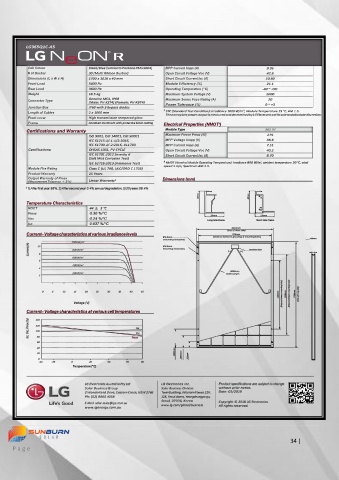

Page 35 - Solar Panels

Mechanical Properties
L Cells G365Q1C-A5 6 x 10 Electrical Properties (STC )
2
Cell Vendor LG Module Type 365 W
Cell Type Monocrystalline / N-type Maximum Power Pmax (W) 365
Cell Dimensions 161.7 x 161.7 mm MPP Voltage Vmpp (V) 36.7
Cell Colour Black/Blue (Similar to Pantone PMS 5004) MPP Current Impp (A) 9.95
# of Busbar 30 (Multi Ribbon Busbar) Open Circuit Voltage Voc (V) 42.8
Dimensions (L x W x H) 1700 x 1016 x 40 mm Short Circuit Current Isc (A) 10.80
Front Load 5400 Pa Module Efficiency (%) 21.1
Rear Load 3600 Pa Operating Temperature (°C) -40 ~ +90
Weight 18.5 kg Maximum System Voltage (V) 1000
Connector Type Genuine MC4, IP68 Maximum Series Fuse Rating (A) 20
(Male: PV-KST4) (Female: PV-KBT4)
Power Tolerance (%) 0 ~ +3
Junction Box IP68 with 3 bypass diodes
2
Length of Cables 2 x 1000 mm STC (Standard Test Condition): Irradiance 1000 W/m², Module Temperature 25 °C, AM 1.5.
The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
Front cover High transmission tempered glass
Frame Anodised aluminum with protective black coating Electrical Properties (NMOT )
3
Certifications and Warranty Module Type 365 W
ISO 9001, ISO 14001, ISO 50001 Maximum Power Pmax (W) 275
IEC 61215-1/-1-1/2:2016, MPP Voltage Vmpp (V) 36.6

IEC 61730-1/-2:2016, UL1703 MPP Current Impp (A) 7.51
Certifications OHSAS 1001, PV CYCLE Open Circuit Voltage Voc (V) 40.2
IEC 61701:2012 Severity 6 Short Circuit Current Isc (A) 8.70
(Salt Mist Corrosion Test)
3 2
IEC 62716:2013 (Ammonia Test) NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m , ambient temperature 20 °C, wind
speed 1 m/s, Spectrum AM 1.5.
Module Fire Rating Class C (UL 790, ULC/ORD C 1703)
Product Warranty 25 Years
Output Warranty of Pmax Dimensions (mm)
(Measurement Tolerance ± 3%) Linear Warranty 1
1 1) After first year: 98%, 2) After second year: 0.4% annual degradation, 3) 25 years: 88.4%
40mm 40mm

Temperature Characteristics
NOCT 44 ± 3 °C

Pmax -0.30 %/°C
Voc -0.24 %/°C 29mm 29mm
Isc 0.037 %/°C Long Side Frame Short Side Frame
(Size of short side)
1016mm
Current– Voltage characteristics at various irradiance levels 976mm
1000W/m 2 Ø 4.3mm (Distance between grouding & mounting holes) 40mm
Grounding holes(4ea)
Mounting holes (8ea)
Current (A) 10 8 800W/m 2 Ø 8.2mm Junction box
600W/m 2
6

400W/m 2
4
200W/m 2 1000mm
Cable Length
2

1100mm (Distance between mounting holes) 1300mm (Distance between mounting holes) 1700mm (Size of long side)
0 5 10 15 20 25 30 35 40 45
Voltage (V)

Current– Voltage characteristics at various cell temperatures

Isc, Voc, Pmax (%) 120 Isc
140
100
80 Voc
Pmax
60

40

20 300mm
200mm 105mm
0
-40 -25 0 25 50 75 90
Temperature (°C)

LG Electronics Australia Pty Ltd LG Electronics Inc. Product specifications are subject to change
Solar Business Group Solar Business Division without prior notice.
2 Wonderland Drive, Eastern Creek, NSW 2766 Twin Building, Western Tower, 11F, Date: 01/2019

Ph: (02) 8805 4038 128, Yeoui-daero, Yeongdeungpo-gu,
Seoul, 07336, Korea
E-Mail: solar.sales@lge.com.au Copyright © 2018 LG Electronics.
www.lg.com/global/business All rights reserved.
www.lgenergy.com.au
