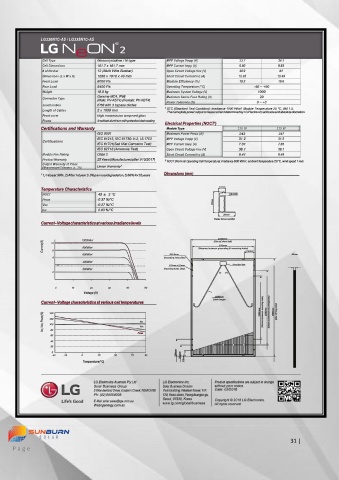

Page 32 - Solar Panels

LG330N1C-A5 I LG335N1C-A5
2
Mechanical Properties Electrical Properties (STC )
Cells 6 x 10 Module Type 330 W 335 W
Cell Vendor LG Maximum Power Pmax (W) 330 335
Cell Type Monocrystalline / N-type MPP Voltage Vmpp (V) 33.7 34.1
Cell Dimensions 161.7 x 161.7 mm MPP Current Impp (A) 9.80 9.83
# of Busbar 12 (Multi Wire Busbar) Open Circuit Voltage Voc (V) 40.9 41
Dimensions (L x W x H) 1686 x 1016 x 40 mm Short Circuit Current Isc (A) 10.45 10.49
Front Load 6000 Pa Module Efficiency (%) 19.3 19.6
Rear Load 5400 Pa Operating Temperature (°C) -40 ~ +90
Weight 18.0 kg Maximum System Voltage (V) 1000
Genuine MC4, IP68 Maximum Series Fuse Rating (A) 20
Connector Type (Male: PV-KST4) (Female: PV-KBT4)
Junction Box IP68 with 3 bypass diodes Power Tolerance (%) 0 ~ +3
2 STC (Standard Test Condition): Irradiance 1000 W/m², Module Temperature 25 °C, AM 1.5.
Length of Cables 2 x 1000 mm
The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
Front cover High transmission tempered glass
Frame Anodised aluminum with protective black coating
Electrical Properties (NOCT )
3
Certifications and Warranty Module Type 330 W 335 W
ISO 9001 Maximum Power Pmax (W) 243 247
IEC 61215, IEC 61730-1/-2, UL1703 MPP Voltage Vmpp (V) 31.2 31.5
Certifications
IEC 61701(Salt Mist Corrosion Test) MPP Current Impp (A) 7.81 7.83
IEC 62716 (Ammonia Test) Open Circuit Voltage Voc (V) 38.1 38.1
Module Fire Rating Class C Short Circuit Current Isc (A) 8.41 8.44
Product Warranty 25 Years (Manufactured after 1/10/2017) 3 NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m , ambient temperature 20 °C, wind speed 1 m/s
2
Output Warranty of Pmax 1
(Measurement Tolerance ± 3%) Linear Warranty

Dimensions (mm)
1 1) 1st year: 98%, 2) After 1st year: 0.5%p annual degradation, 3) 86% for 25 years

Temperature Characteristics 12mm
NOCT 45 ± 3 °C 4.4mm
4mm
Pmax -0.37 %/°C
40mm
Voc -0.27 %/°C

Isc 0.03 %/°C
29mm
Frame Cross-section
Current– Voltage characteristics at various irradiance levels

1016mm
1000W/m 2 (Size of short side)
Current (A) 8 800W/m 2 (Distance between grounding & mounting holes)
10 976mm
Ø 4.3mm 175mm 40mm
600W/m 2
6 Grounding holes (8ea)

400W/m 2
4 8.5mm x 12mm Junction box
Mounting holes (8ea)
200W/m 2
2

0 10 20 30 40 50
Voltage (V)

1000mm
Cable length
Current– Voltage characteristics at various cell temperatures
(Size of long side)
140 1086mm (Distance between mounting holes) 1286mm (Distance between mounting holes) 1686mm
120
Isc, Voc, Pmax (%) 100 Isc
80 Voc
Pmax
60

40

20

0 300mm
-40 -25 0 25 50 75 90
200mm 105mm
Temperature (°C)

LG Electronics Australia Pty Ltd LG Electronics Inc. Product specifications are subject to change
Solar Business Group Solar Business Division without prior notice.
2 Wonderland Drive, Eastern Creek, NSW 2766 Twin Building, Western Tower, 11F, Date: 02/2018
Ph: (02) 88054038 128, Yeoui-daero, Yeongdeungpo-gu,
Seoul, 07336, Korea
E-Mail: solar.sales@lge.com.au www.lg.com/global/business Copyright © 2018 LG Electronics.
Web:lgenergy.com.au All rights reserved.
