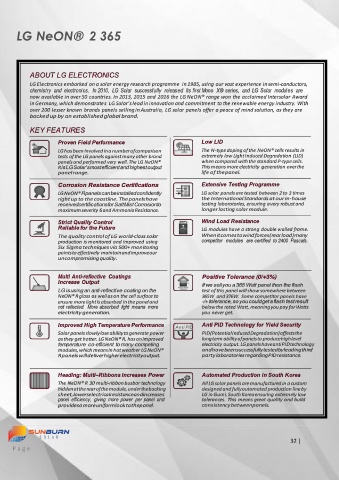

Page 33 - Solar Panels

LG NeON® 2 365

ABOUT LG ELECTRONICS
LG Electronics embarked on a solar energy research programme in 1985, using our vast experience in semi-conductors,
chemistry and electronics. In 2010, LG Solar successfully released its first Mono X® series, and LG Solar modules are
now available in over 50 countries. In 2013, 2015 and 2016 the LG NeON® range won the acclaimed Intersolar Award
in Germany, which demonstrates LG Solar’s lead in innovation and commitment to the renewable energy industry. With
over 200 lesser known brands panels selling in Australia, LG solar panels offer a peace of mind solution, as they are
backed up by an established global brand.

KEY FEATURES

Proven Field Performance Low LID

LG has been involved in a number of comparison The N-type doping of the NeON® cells results in
tests of the LG panels against many other brand extremely low Light Induced Degradation (LID)
panels and performed very well. The LG NeON® when compared with the standard P-type cells.
R is LG Solar’s most efficient and highest output This means more electricity generation over the
panel range. life of the panel.

Corrosion Resistance Certifications Extensive Testing Programme
LG NeON® R panels can be installed confidently LG solar panels are tested between 2 to 3 times
right up to the coastline. The panels have the International Standards at our in-house
received certifications or Salt Mist Corrosion o testing laboratories, ensuring a very robust and
f
t
maximum severity 6 and Ammonia Resistance. longer lasting solar module.

Strict Quality Control 3600Pa Wind Load Resistance
Reliable for the Future LG modules have a strong double walled frame.
The quality control of LG world-class solar When it comes to wind forces (rear load) many
production is monitored and improved using competitor modules are certified to 2400 Pascals.
Six Sigma techniques via 500+ monitoring
points to effectively maintain and improve our
uncompromising quality.

Multi Anti-reflective Coatings Positive Tolerance (0/+3%)
Increase Output
If we sell you a 365 Watt panel then the flash
LG is using an anti-reflective coating on the test of this panel will show somewhere between
NeON® R glass as well as on the cell surface to 365W and 376W. Some competitor panels have
ensure more light is absorbed in the panel and -/+ tolerance, so you could get a flash test result
not reflected. More absorbed light means more below the rated Watt, meaning you pay for Watts
electricity generation. you never get.

Improved High Temperature Performance Anti PID Anti PID Technology for Yield Security
Solar panels slowly lose ability to generate power PID (Potential Induced Degradation) affects the
as they get hotter. LG NeON® R, has an improved long term ability of panels to produce high level
temperature co-efficient to many competing electricity output. LG panels have anti PID technology
modules, which means in hot weather LG NeON® and have been successfully tested by leading third
R panels will deliver higher electricity output. party laboratories regarding PID resistance.

Heading: Multi–Ribbons Increases Power Automated Production in South Korea
The NeON® R 30 multi-ribbon busbar technology All LG solar panels are manufactured in a custom
hidden at the rear of the module, under the backing designed and fully automated production line by
sheet, lowers electrical resistance and increases LG in Gumi, South Korea ensuring extremely low
panel efficiency, giving more power per panel and tolerances. This means great quality and build
provides a more uniform look to the panel. consistency between panels.
