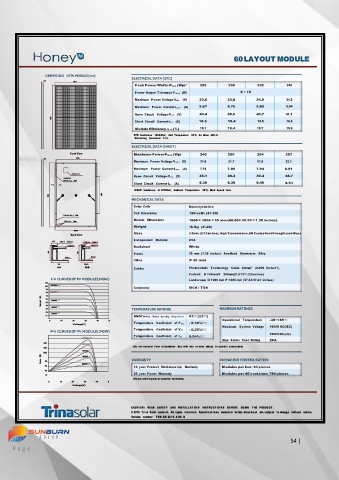

60 LAYOUT MODULE

DIMENSIONS OF PV MODULE(mm)
ELECTRICAL DATA (STC)
35 100 4
Peak Power Watts-P MAX (Wp)* 325 330 335 340
seral i
number
Power Output Tolerance-P M A X (W) 0 ~ +5
Maximum Power Voltage-V MPP (V) 33.6 33.8 34.0 34.2
Maximum Power Current-I M PP (A) 9.67 9.76 9.85 9.94
Open Circuit Voltage-V O C (V) 40.4 40.6 40.7 41.1
1698
Short Circuit Current-I S C (A) 10.3 10.4 10.5 10.6
Module Eficiency η m (%) 19.1 19.4 19.7 19.9
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5.
*Measuring tolerance: ±3%.

ELECTRICAL DATA (NMOT)

Front View Maximum Power-P MAX (Wp) 246 250 254 257
35 959
Maximum Power Voltage-V M P P (V) 31.6 31.7 31.9 32.1
Maximum Power Current-I M PP (A) 7.79 7.86 7.94 8.01
Namep l a te
Open Circuit Voltage-V O C (V) 38.1 38.3 38.4 38.7
4- 9×14
Insta ll i n g Hole 8.30 8.38 8.46 8.54
A A Short Circuit Current-I S C (A)
NMOT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.

1698 990
MECHANICAL DATA
Solar Cells Monocrystalline

6-Gro u n di n g Hole Cell Orientation 120 cells (6× 20)
12-D ra i n Hole Module Dimensions 1698 × 1004 × 35 mm (66.85× 39.53 × 1.38 inches)
Weight
18.7kg (41.2lb)
1004 Glass 3.2mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass
Back View

11.5 Silico n Seala n t 8 Silic o n Seala n t Encapsulant Material EVA
Lamin a te Lami n a te
Backsheet White
35
35 Frame 35 mm (1.38 inches) Anodized Aluminium Alloy
Frame Fra me
J-Box IP 68 rated
35 24.5
A-A B-B Cables Photovoltaic Technology Cable 4.0mm² (0.006 inches²),

Portrait: N 140mm/P 285mm(5.51/11.22inches )
I-V CURVES OF PV MODULE(340W) Landscape: N 1200 mm /P 1200 mm (47.24/47.24 inches)
11.0

10.0 1000W/ Connector MC4 / TS4
9.0
8.0
(A) 7.0
6.0
Current 5.0 600W/
4.0
3.0 400W/ TEMPERATURE RATINGS MAXIMUM RATINGS
2.0
200W/
1.0 NMOT (Nominal Module Operating Temperature ) 41℃ (±3℃)
0 10 20 30 40 50 Temperature Coeficient of P MAX Operational Temperature -40~+85℃
Voltage(V) - 0.36%/℃
Temperature Coeficient of V OC - 0.26%/℃ Maximum System Voltage 1000V DC (IEC)
P-V CURVES OF PV MODULE(340W)
Temperature Coeficient of I SC 0.04%/℃ 1000V DC (UL)
Max Series Fuse Rating 20A

350

(Do not connect Fuse in Combiner Box with two or more strings in parallel connection)
300
600W/
250
(W) 400W/
Power 200 WARRANTY PACKAGING CONFIGURATION
150 200W/ 10 year Product Workmans hip Warranty Modules per box: 30 pieces

100
50 25 year Power Warranty Modules per 40’container: 780 pieces
(Please refer to product warranty for details)
0 10 20 30 40 50
Voltage(V)

CAUTION: READ SAFETY AND INSTALLAT IO N INSTRUCT IO NS BEFORE USING THE PRODUCT .
© 2019 Trina Solar Limit ed. All rights reserved. Specificat ions included in this datas heet are subject to change without notice.
Version number: TSM_EN_2019_A US _B C
